Ultra High Purity Reverse Osmosis System with AlkaHydrate

The Ultra High Purity Reverse Osmosis System is designed for customers wanting comprehensive under-sink filtration in a compact, easy-to-maintain system.

Its five-stage filtration process includes dedicated sediment pre-filtration, carbon pre-filtration, reverse osmosis purification, AlkaHydrate mineralisation and final coconut carbon polishing.

The system produces approximately 200 litres of purified water per day under suitable operating conditions and uses hygienic twist-off cartridges for straightforward routine maintenance.

It is hand-built in Sydney using local, USA and UK components and wet-tested before supply.

• Premium five-stage reverse osmosis filtration

• 0.0005 micron RO membrane

• Dedicated sediment pre-filter

• Carbon pre-filtration

• AlkaHydrate mineralisation and alkalisation

• Final coconut carbon polishing

• Helps reduce fluoride

• Helps reduce chlorine

• Helps reduce selected heavy metals

• Helps reduce pesticides and organic contaminants

• Helps reduce bacteria, parasites and other microbiological contaminants

• Helps improve taste and odour

• Adds selected minerals including calcium, magnesium and potassium

• Approximately 200 litres per day production

• Hygienic twist-off replacement cartridges

• Compact under-sink design

• Optional 8L, 12L or 18L storage tanks

• Can be ordered without a storage tank

• WaterMark certified

• WaterMark Certificate No. 23124

• Hand-built in Sydney

• All filters replaced every 12 months

• 1-year product warranty

The Ultra High Purity Reverse Osmosis System with AlkaHydrate is WaterMark certified for use within suitable Australian plumbing installations.

WaterMark Certificate Number: 23124

This provides additional assurance that the system has been assessed against applicable plumbing and drinking-water treatment requirements.

The Ultra High Purity Reverse Osmosis System uses five filtration stages to progressively treat the incoming water before dispensing.

Stage 1 - Sediment pre-Filter

The sediment pre-filter provides the first stage of filtration.

It helps reduce:

• Dirt

• Sand

• Rust

• Silt

• Fine sediment

• Other suspended particles

This stage also helps protect the carbon filter and reverse osmosis membrane installed after it.

Stage 2 - Carbon Pre-Filter

The carbon pre-filter helps reduce:

• Chlorine

• Pesticides

• Selected organic contaminants

• Taste

• Odour

• Other unwanted impurities

This stage also helps protect the reverse osmosis membrane from chlorine exposure.

Stage 3 - Reverse Osmosis Membrane

The ultra-fine TFC reverse osmosis membrane provides the primary purification stage.

With filtration down to approximately 0.0005 micron, it helps reduce:

• Fluoride

• Selected heavy metals

• Dissolved impurities

• Hydrocarbons

• Bacteria

• Viruses

• Parasites

• Other microscopic contaminants

During reverse osmosis, purified water passes through the semi-permeable membrane while rejected impurities are flushed to the drain.

Stage 4 – AlkaHydrate Filter

After reverse osmosis purification, the water passes through the AlkaHydrate Filter.

This stage remineralises and alkalises the purified water by introducing selected minerals including:

• Calcium

• Magnesium

• Potassium

• Other naturally occurring minerals

The AlkaHydrate stage also helps raise the pH of the purified water before it moves through the final polishing stage.

Stage 5 – Coconut Carbon Post-Filter

The final stage uses a coconut carbon post-filter to polish the remineralised water before it reaches the faucet.

This stage helps:

• Improve final taste

• Reduce unwanted odour

• Provide final carbon polishing

• Produce a smooth, fresh-tasting finish

The Ultra High Purity Reverse Osmosis System is designed to help reduce a broad range of unwanted contaminants, including:

• Aluminium

• Barium

• Cadmium

• Chlorine

• Chromium

• Copper

• Cryptosporidium

• E. coli

• Fluoride

• Giardia

• Hydrocarbons

• Iron

• Lead

• Manganese

• Mercury

• Nitrate

• PCB's

• Radium

• Sediment

• Dirt

• Rust

• Selenium

• Sodium

• Taste and odour

• Selected heavy metals

• Other dissolved and microscopic impurities

The five-stage design combines sediment filtration, carbon pre-filtration, reverse osmosis, mineralisation and final carbon polishing for comprehensive drinking-water treatment.

The Ultra High Purity Reverse Osmosis System can be ordered without a storage tank or paired with one of three pressurised RO storage tanks.

No Tank

Choose this option if you already have a compatible RO storage tank or intend to configure the system separately.

8-Litre Storage Tank

Dimensions:

31.7 cm high × 20.3 cm diameter

Approximate usable water storage:

Holds 5 litres of water

A compact option where under-sink space is limited.

12-Litre Storage Tank

Dimensions:

36.6 cm high × 24.4 cm diameter

Approximate usable water storage:

Holds 8 litres of water

A balanced choice for everyday household use.

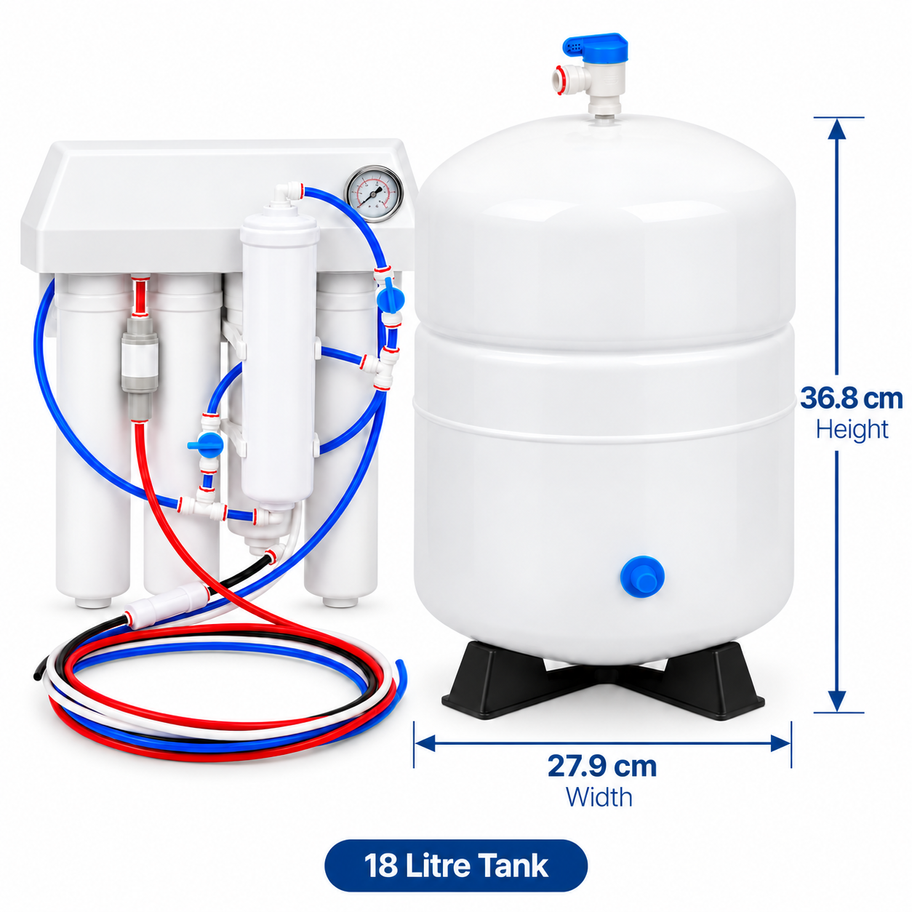

18-Litre Storage Tank

Dimensions:

36.8 cm high × 27.9 cm diameter

Approximate usable water storage:

Holds 11 litres of water

Suitable where a larger reserve of purified water is preferred.

The pressurised storage tank keeps purified water available for dispensing when required.

The Ultra High Purity Reverse Osmosis System with AlkaHydrate can be installed as a standalone under-sink filtration system because it already includes dedicated sediment and carbon pre-filtration.

For customers wanting filtration throughout the entire property as well as dedicated high-purity drinking water, it can also be paired with either of our whole house systems.

View Triple Whole House Water Filtration System: Click Here

View Double Whole House Water Filtration System: Click Here

This combination provides whole-property filtration together with dedicated five-stage reverse osmosis drinking water at the kitchen.

The Ultra High Purity system includes a dedicated sediment pre-filter, making it a strong standalone under-sink reverse osmosis option.

If you already have one of our whole house filtration systems and want a smaller under-sink unit designed specifically to complement that pre-filtration, you may also consider our:

Compact High Purity Reverse Osmosis System with AlkaHydrate:

View Compact High Purity System

Compact Under-Sink Design

The Ultra High Purity system is designed to provide five-stage filtration within a compact under-sink configuration.

System dimensions: 32 cm W × 42 cm H × 11 cm D

Production: Approximately 200 litres per day under suitable operating conditions.

RO membrane rating: 0.0005 micron

The Ultra High Purity system uses hygienic twist-off replacement cartridges.

This allows routine filter maintenance without opening traditional filter housings, helping make cartridge replacement cleaner and simpler.

Filtered Water Systems recommends replacing all five filters every 12 months.

Sediment Pre-Filter

Recommended replacement: Every 12 months

Provides mechanical pre-filtration and helps protect the later filtration stages.

Carbon Pre-Filter

Recommended replacement: Every 12 months

Helps reduce chlorine and organic contaminants before water reaches the RO membrane.

RO Membrane

Recommended replacement: Every 12 months

Provides the primary high-purity reverse osmosis filtration stage.

AlkaHydrate Filter

Recommended replacement: Every 12 months

Provides mineralisation and alkalisation after reverse osmosis purification.

Coconut Carbon Post-Filter

Recommended replacement: Every 12 months

Provides the final carbon polishing stage after AlkaHydrate mineralisation.

Actual cartridge life may vary depending on incoming water quality, water usage and operating conditions.

Stay on top of your Ultra High Purity filter replacements with our subscription options.

Filtered Water Systems recommends replacing all five cartridges every 12 months.

Our filter subscription plans can help make sure your annual replacement filters are available when required.

View Filter Subscription Plans: Click Here

Purchase replacement filters for your Ultra High Purity Reverse Osmosis System here:

View Replacement Filters: Click Here

Need us to replace the filters for you?

Filtered Water Systems offers a dedicated reverse osmosis filter replacement service.

Book Reverse Osmosis Filter Replacement Service: Click Here

For best results, we recommend having the Ultra High Purity Reverse Osmosis System professionally installed by a licensed plumber.

Correct installation ensures the cold-water supply, drain, storage tank, faucet and filtration system are connected properly.

Filtered Water Systems can help organise installation with our licensed plumber.

Need installation? Contact us to arrange it.

Phone: +61 478 800 996

Email: sales@filteredwatersystems.com.au

The Ultra High Purity Reverse Osmosis System comes with a 1-year product warranty, subject to correct installation, proper use and the applicable warranty conditions.

Damage caused by incorrect or improper installation, misuse, unsuitable water pressure, connection to an unsuitable water supply, lack of required maintenance, or failure to follow recommended installation and operating requirements may not be covered under the product warranty.

Nothing in this notice limits your rights under the Australian Consumer Law.

Have questions about the Ultra High Purity Reverse Osmosis System with AlkaHydrate, storage tank options, installation or replacement filters?

Contact Filtered Water Systems and we can help you choose the right setup for your property.

Phone: +61 478 800 996

Email: sales@filteredwatersystems.com.au
